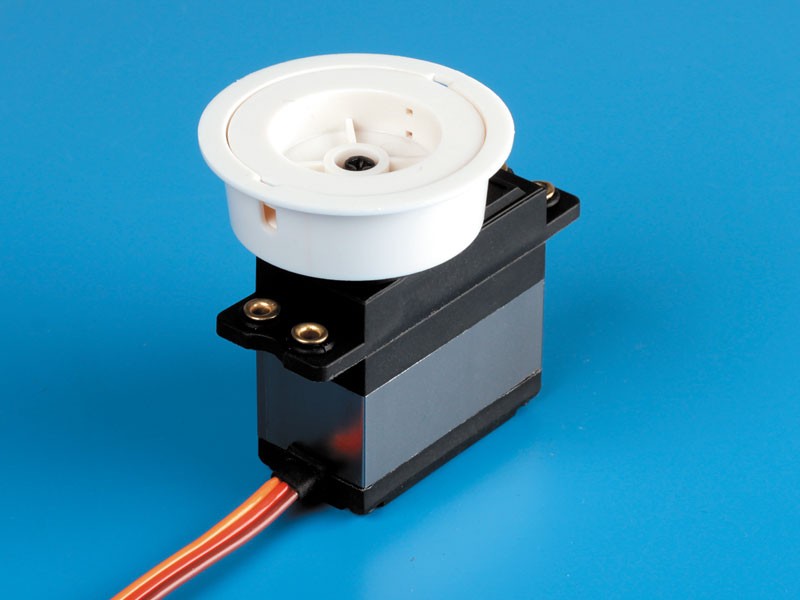

Standard servo size sail winch for sailing yachts. A special feature of the Windforce sailing winch series is the encapsulated winch drum. This guides the sheet and cannot jump off the drum. With the digital Windforce 1406 sailing winch, the maximum sheet travel can be set both via the travel settings on the transmitter and via a separately available programming card. Depending on the application, 1 to 6 revolutions of the winch drum are programmed. This results in a possible path of approx. 7.5 – 45 cm. This sailing winch is characterized by high holding power and fast response times, which enables precise sailing even in stronger winds.

Features

• Metal gears
• Ball bearings
• Additional routing of the sheet through the closed diaper drum
• Programmable Servo travel
• Powerful and fast

Technical data
Length approx. 40, 5 mm
Width approx. 20.2 mm
Height approx. 38 mm
Weight 61 g

Winding diameter approx. 24.5 mm
Sheet length per turn approx. 75 mm
Number of turns max. 6

Operating voltage 4.8 V – 6 V

Setting force 121 Ncm at 4.8 V
Actuating force 142 Ncm at 6 V

Speed 0.72s/360° at 4.8 V
Speed 0.6s/360° at 6 V

No-load current 0.12 – 0.14 A
Operating current 0.4 – 0.5

A Stall current 1.8 – 2 .2 A

connection cable JR/Universal with a length of approx. 265 mm
